Display
Warranty3-Years
Display TypeOLED
Video OutputAnalog & Digital
Image CaptureYes
Onboard RecordingNo
WifiNo
Ingress ProtectionIP67
Country of ManufactureUSA
-
Environmental Specifications
Power Source2 CR123A Lithium
Run Time4 Hours
-
Lens Specifications
Exit Pupil14mm
Eye Relief27mm
Eyepiece Focal Length27mm
Digital Magnification1-8X
Detection Range1800 Meters
Optical Magnification1.75X
Focusing MechanismFixed Focus
Objective F#1.2
Objective Diameter29mm
Housing MaterialAluminum
Diopter Range-6 to +2
Vertical Angular Field of View9.3°
Horizontal Angular Field of View12.4°
Eyepiece Diameter30mm
Connector TypeUSB-C
Objective Focal Length35mm

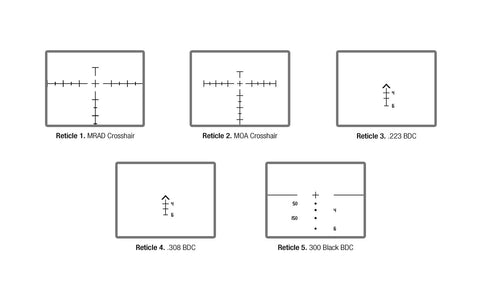

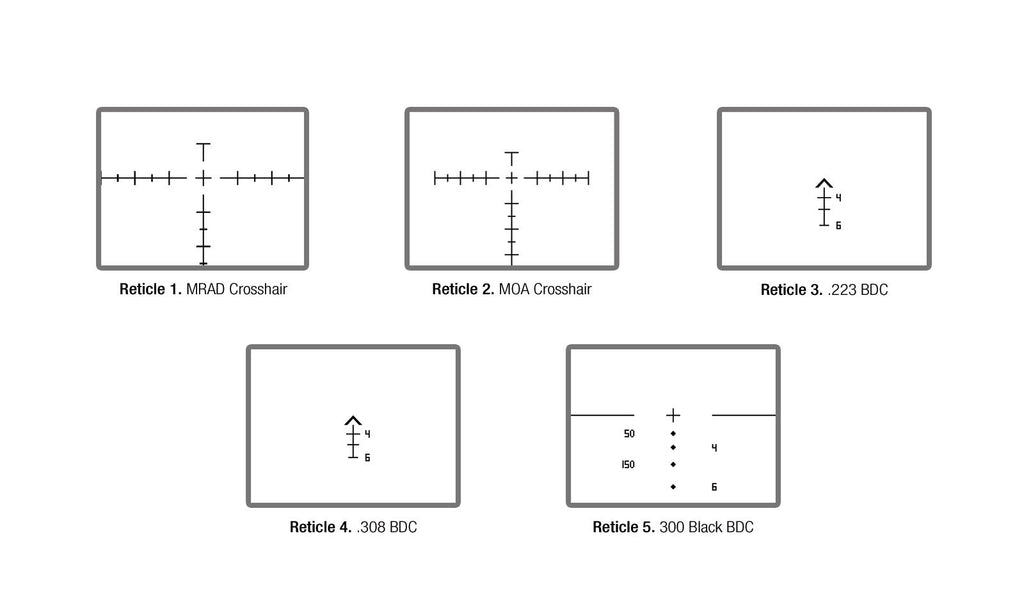

ReticleMRAD, MOA, .223 REM, .308 WIN, and 300BLK BDC
-
-
Sensor Specifications
Sensor Resolution640x480
Device TechnologyThermal Imaging
Spectral Response8-12 µm
Sensor Frame Rate30Hz/60Hz
Sensor TypeVox
Sensor Pixel Size12 µm
Thermal Sensitivity<50 mK
